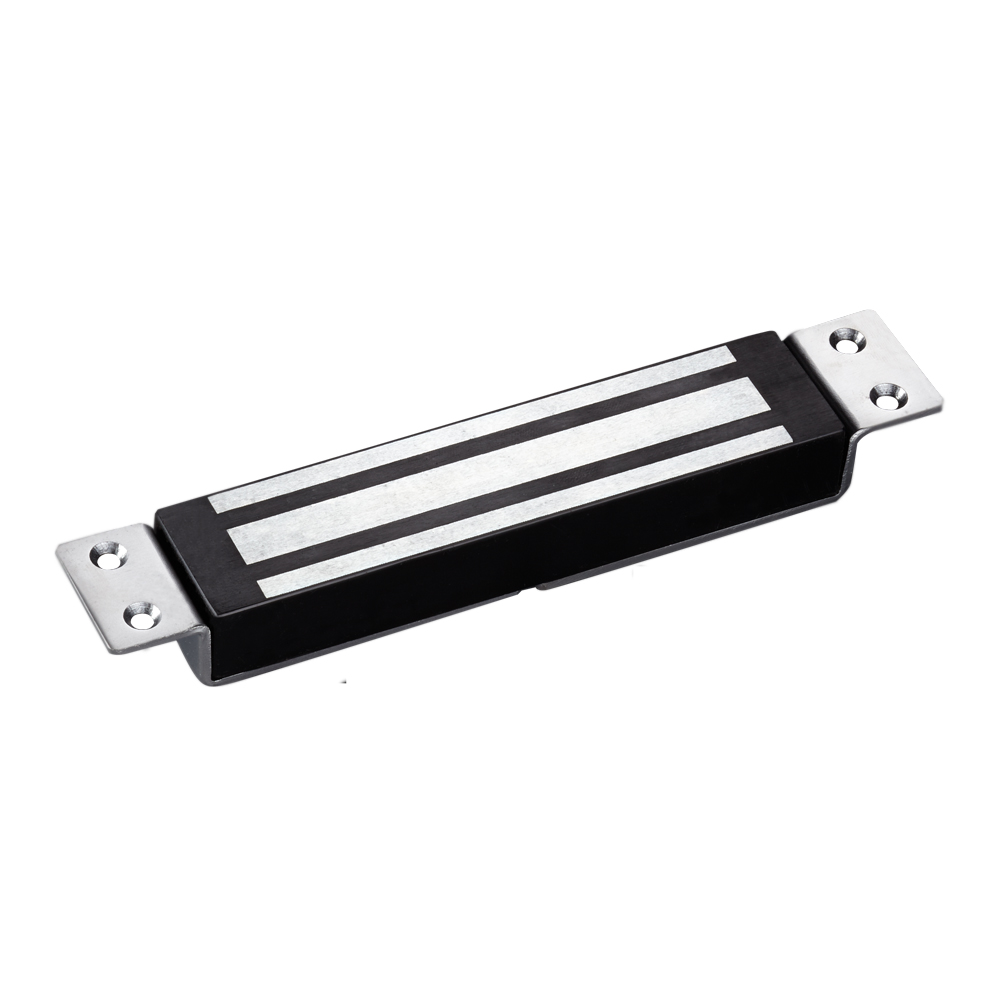

YM-350 Single Door Magnetic Lock

YM-350 Single Door Magnetic Lock

  • Overview

  • Feature

  • Specification

  • Configuration

  • Download

800lbs single door electric lock. Can be used on heavy door, wooden door, fireproof door, sliding door and metal door and so on. Aluminum is the main material and Dual Voltage 12 or 24 VDC is optional.
Collinear Load Test 350kg, 800pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Anti-Residual Magnetism Designed.
High Strength Material, Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force, Dual Insulative Housing.
CE Certificate by European Union, MA Certificate by China Public Security Office.
Product Parameter Parameter Description
Lock Size 285Lx55Wx27.5H(mm)
Armature plate 190Lx45Wx11H(mm)
Holding Force 350kg(800Lbs)
Voltage 12 or 24VDC
Current Draw 12V/480mA or 24V/240mA
Suitable for Wooden door, Glass door, Metal door, Fireproof door
Surface Temp  ≤+20℃
Operating Temp -10~+55℃(14-131F)
Suitable Humidity 0~95%(non-condensing)
Finishes for Shell Anodized aluminum
Finishes for Magnetic Zinc
Finishes for Armature Zinc
Weight: 2.7kg
