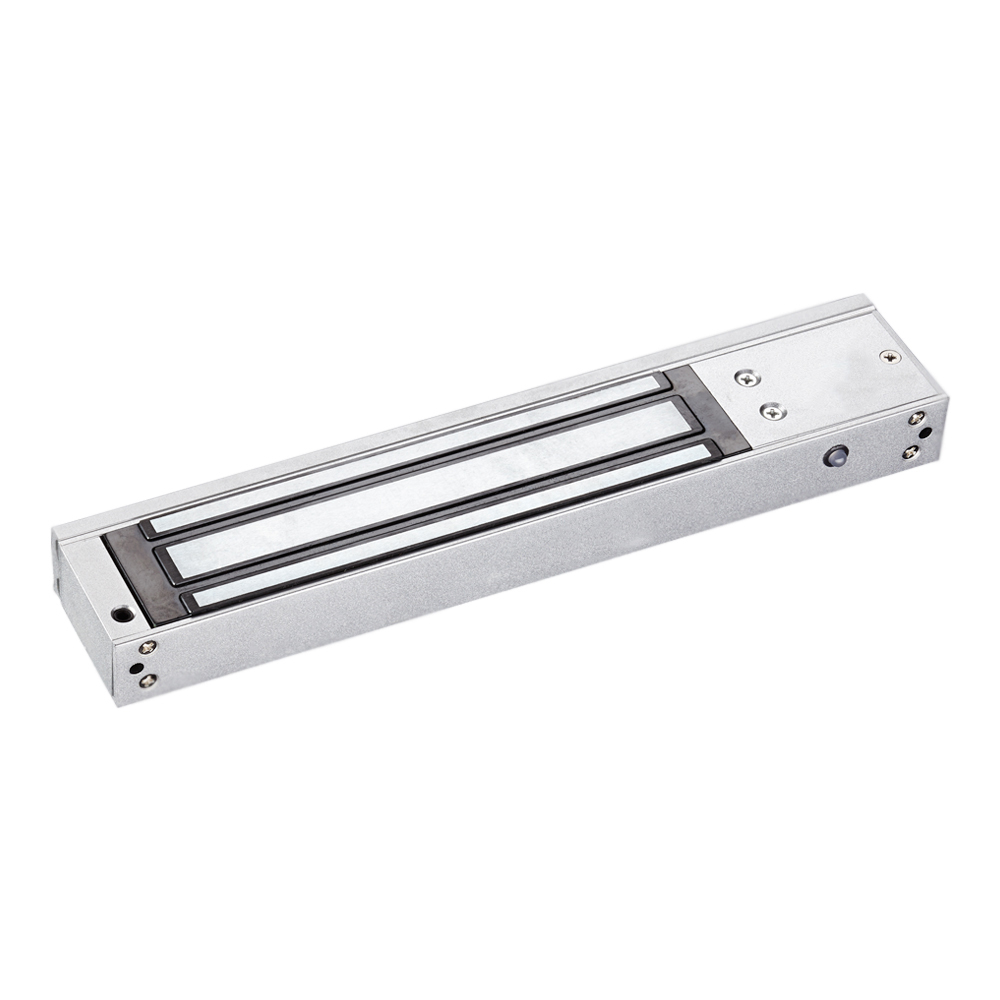

YM-280D(LED)-DS Double Door Magnetic Lock(LED)

YM-280D(LED)-DS Double Door Magnetic Lock(LED)

  • Overview

  • Feature

  • Specification

  • Configuration

  • Download

Except for With LED indicator, it can be classified into double door electric lock. glass door, wooden door, fireproof door, sliding door and metal door is allowed to be installed. Inbuilt dry contacts lock status signal output ( NO,NC,COM), door status signal output ( NO,NC,COM) make it special.
Collinear Load Test 280kg, 600pounds x 2.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door.
LED Indicates the door Status.
Lock Status sensor(NO/NC/COM).
Door Status sensor(NO/NC/COM).
Anti-Residual Magnetism Designed.
High Strength Material, Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force, Dual Insulative Housing.
CE Certificate by European Union, MA Certificate by China Public Security Office.

Product Parameter Parameter Description
Size 500Lx48.5Wx25H(mm)
Armature Plate Dimension 180Lx38Wx11H(mm)
Holding Force 280kg(600Lbs) x2
Input Voltage 12 or 24VDC
Current 12V/500mA x 2 or 24V/250mA x 2
LED Red indicates the door is unlocked, Green indicates the door is locked
door status signal output NO,NC,COM
Suitable Wooden door, Glass door, Metal door, Fireproof door
Surface Temp ≤+20℃
Operating Temp  -10~+55℃(14-131F)
Humidity  0~90%(non-condensing)
Cover Finish Anodized aluminum
Lock Finish Zinc
Armature Plate Finish Zinc
Weight 4.2KG
