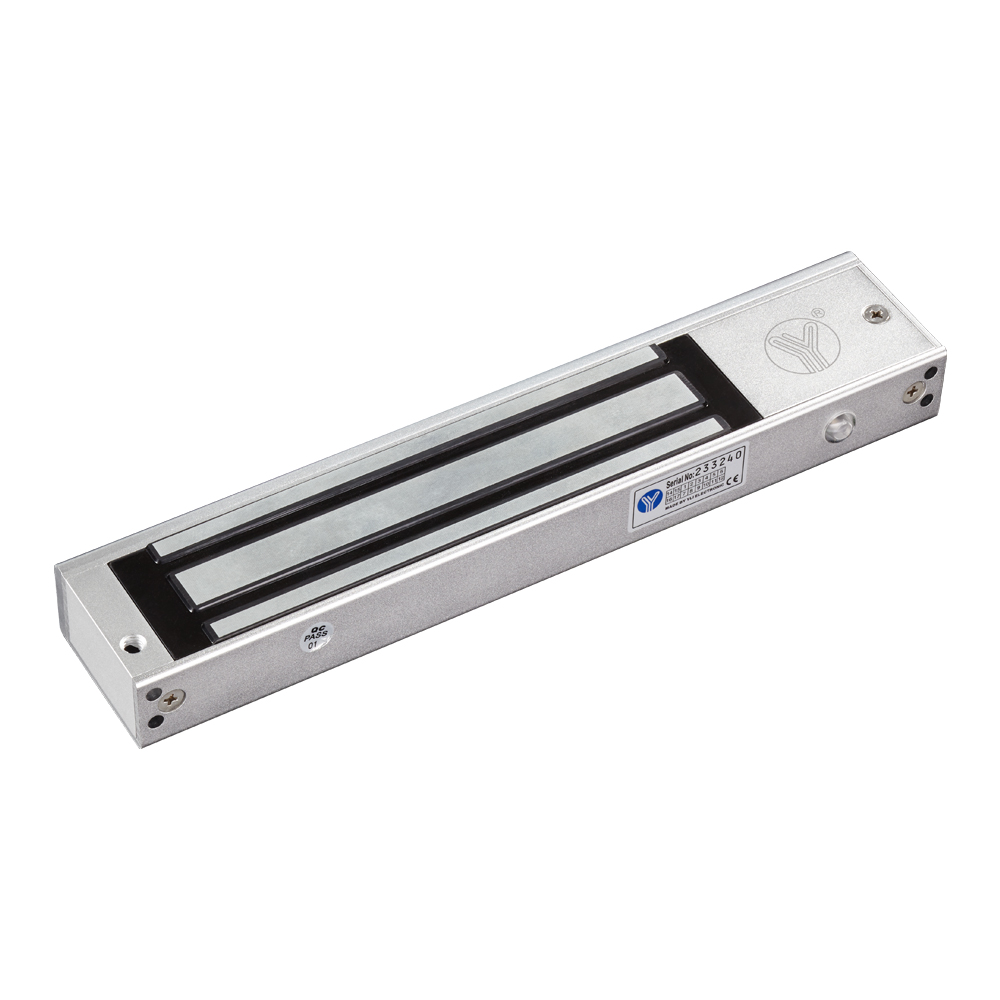

Single Door Magnetic Lock(EL-280)
Glass door, wooden door, fireproof door, sliding door and metal door can be fixed with single door magnetic lock. 600lbs is the holding force. Aluminum is the main material. Special anti-residual magnetism designed makes the access control automation safer and electric lock more durable.
Collinear Load Test 280kg,600pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Anti-Residual Magnetism Designed.
High Strength Material,Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force,Dual Insulative Housing.
CE Certificate by European Union,MA Certificate by China Public Security Office.
N/A
|
Product Parameter
|
Parameter Description
|
|
Size
|
250Lx48.5Wx25H(mm)
|
|
Armature Plate Dimension
|
180Lx38Wx11H(mm)
|
|
Holding Force
|
280kg(600Lbs)
|
|
Input Voltage
|
12 or 24VDC
|
|
Current
|
12V/500mA or 24V/250mA
|
|
Suitable
|
Wooden door , Glass door ,Metal door , Fireproof door
|
|
Surface Temp
|
≤+20℃
|
|
Operating Temp
|
-10~+55℃(14-131F)
|
|
Humidity
|
0~90%(non-condensing)
|
|
Cover Finish
|
Anodized aluminum
|
|
Lock Finish
|
Zinc
|
|
Armature Plate Finish
|
Zinc
|
|
Weight
|
2.1kg
|
