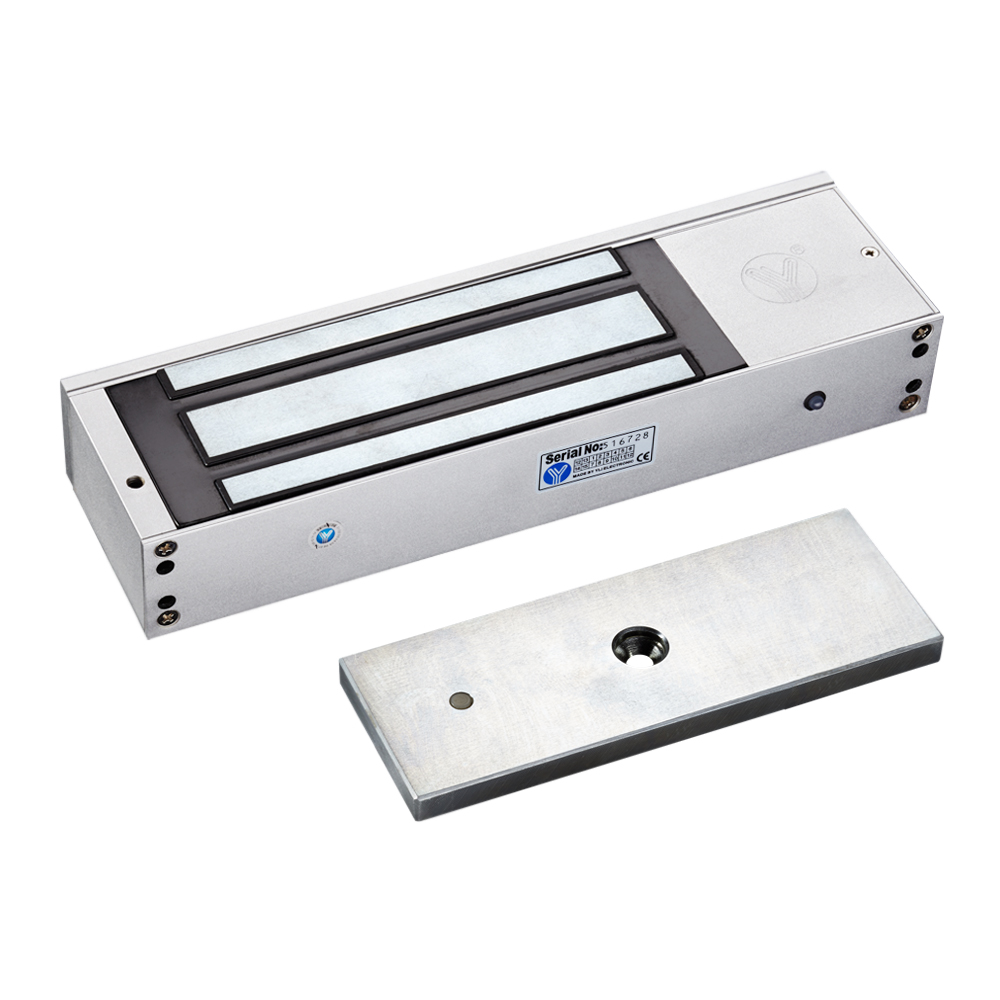

YM-350D Double Door Magnetic Lock

YM-350D Double Door Magnetic Lock

  • Overview

  • Feature

  • Specification

  • Configuration

  • Download

Double door electric lock with 800lbd holding force on each side. Accessories for in swing door, frameless glass door, narrow door frame door and so on are available. It is better to install on wooden door, fireproof door, metal door. 12 or 24VDC for your choice.
Collinear Load Test 350x2kg, 800x2pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Anti-Residual Magnetism Designed.
High Strength Material, Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force, Dual Insulative Housing.
CE Certificate by European Union, MA Certificate by China Public Security Office.
Product Parameter Parameter Description
Lock Size 570Lx55Wx27.5H(mm)
Armature plate 190Lx45Wx11H(mm)
Holding Force 350kgx2(800Lbsx2)
Voltage 12 or 24VDC
Current Draw 12V/480mA*2 or 24V/240mA*2
Suitable for Wooden door, Glass door, Metal door, Fireproof door
Surface Temp  ≤+20℃
Operating Temp -10~+55℃(14-131F)
Suitable Humidity 0~95%(non-condensing)
Finishes for Shell Anodized aluminum
Finishes for Magnetic Zinc
Finishes for Armature Zinc
Weight: 5.4kg
