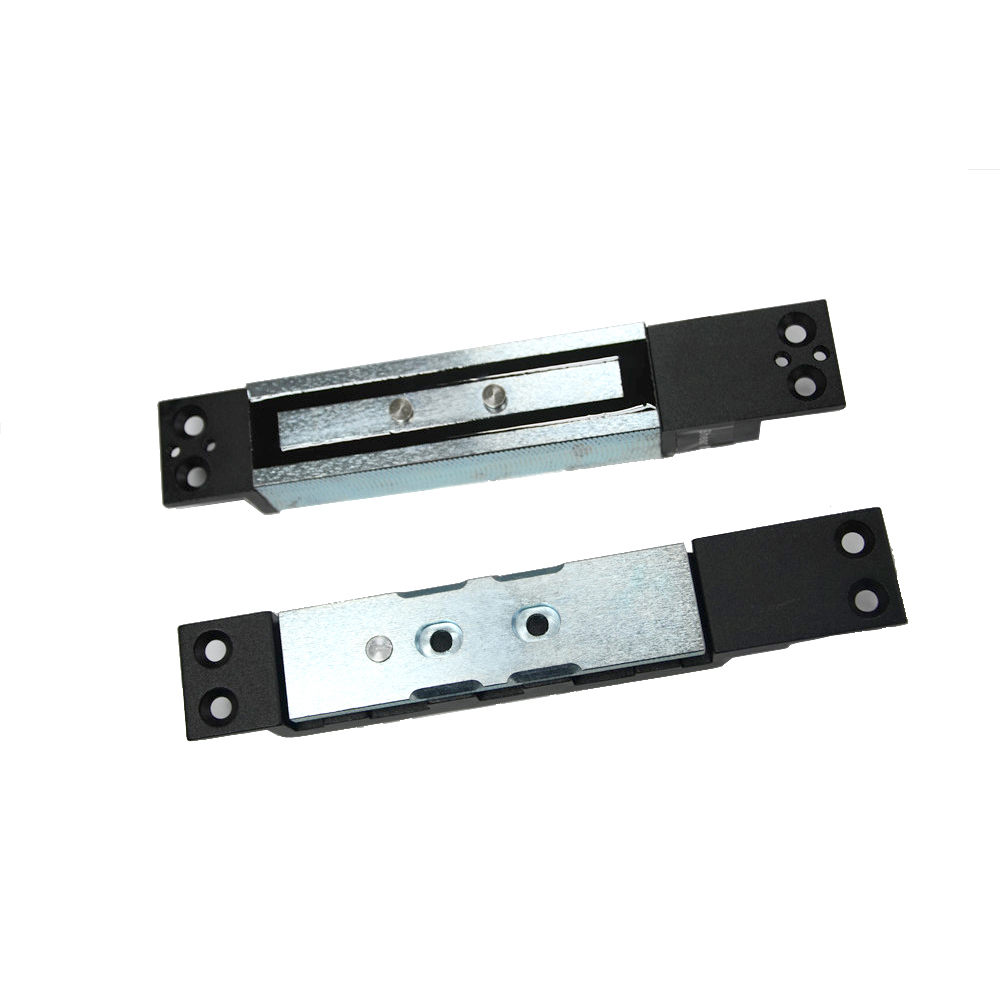

YM-280H(LED) 280kg Single Door Magnetic Lock (Portable)

YM-280H(LED) 280kg Single Door Magnetic Lock (Portable)

  • Overview

  • Feature

  • Specification

  • Configuration

  • Download

280kg single door magnetic lock. IP-68 waterproof for indoor and outdoor use. The installation is very easy. High anti-impact strength.Dual Voltage 12/24V optional.
IP-68 waterproof design, for indoor or outdoor use.
Dual Voltage 12V/24V DC (optional).
With LED indicator for door status and lock signal output contact.
With integrated design, the anti-impact strength is three times higher than the traditional one.
The speed of installation is three times faster than the traditional one.
Patented product, counterfeiting is not permitted..
Product Parameter Parameter Description
Size 235Lx26.5Wx43H(mm)
Input Voltage DC12V or DC24V
Current 12V/ 520mA; 24V/ 260mA
Holding Force 280kg(600Lbs)
Signal Output Lock signal(NO/COM)
LED Red shows locked; Green shows unlocked
Operating Temp -10~+55℃
Waterproof  Level IP-68
Weight 2.4KG
Patent Number 201620102661.X

New product
