AEL-280W

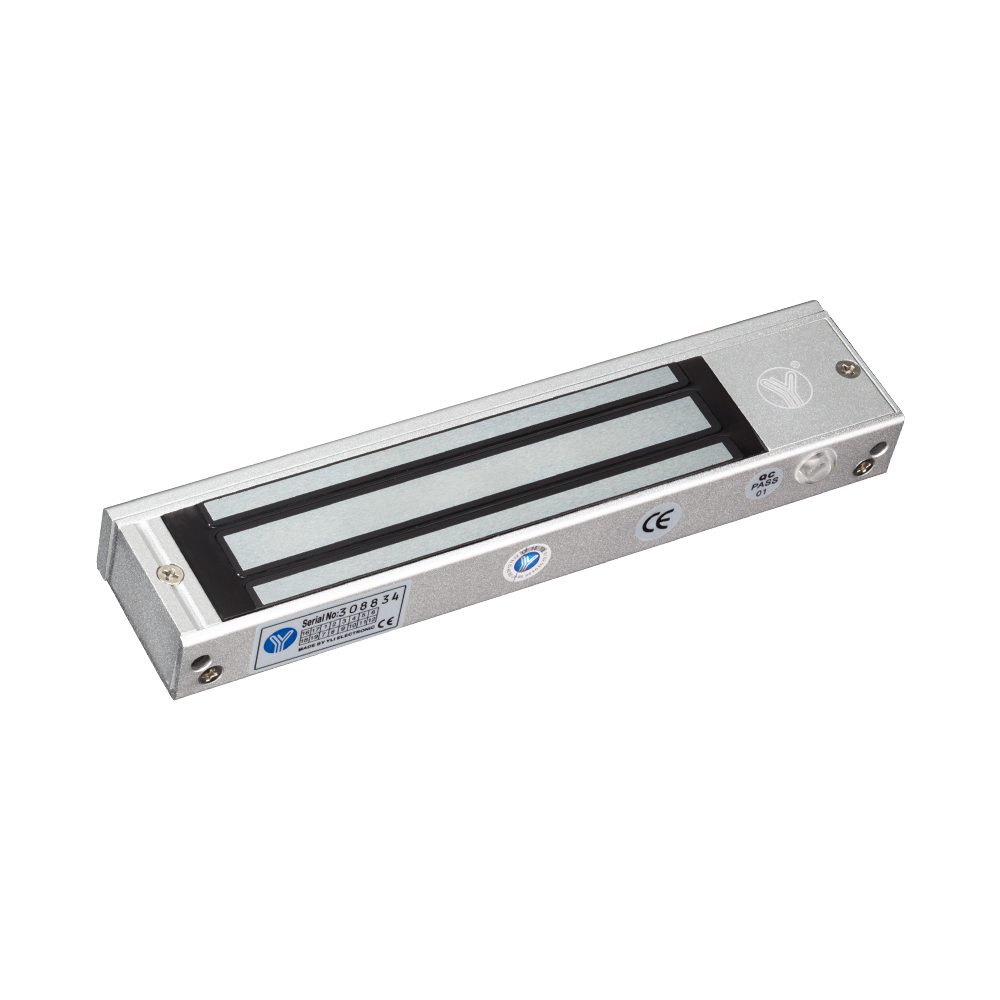

AEL-280W IP68 Waterproof 280kgs 600 Lbs Electronic Magnetic Lock

  • Overview

  • Feature

  • Specification

  • Configuration

  • Download

Collinear Load Test 280kg, 600pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door.
The Shell Finished with Stainless Steel, more Strong and Durable.
Special Waterproof, Indoor and Outdoor can be installed.
Design without Mechanical Failure, Depending on the powerful Magnetic force.
Increase the holding Force, Dual Insulative Housing.
CE Certificate by European Union, MA Certificate by China Public Security Office.
Product Description Parameter Parameter
Size 235*46*25.5(mm)
Holding Force 280kg(600Lbs)
Input Voltage 12 or 24VDC
Current 12V/520mA or 24V/260mA
Suitable Wooden door, Glass door, Metal door, Fireproof door
Operating Temp  -10~+55℃(14-131F)
Signal Output NO/COM
Waterproof Level  IP-68
Weight 2KG
